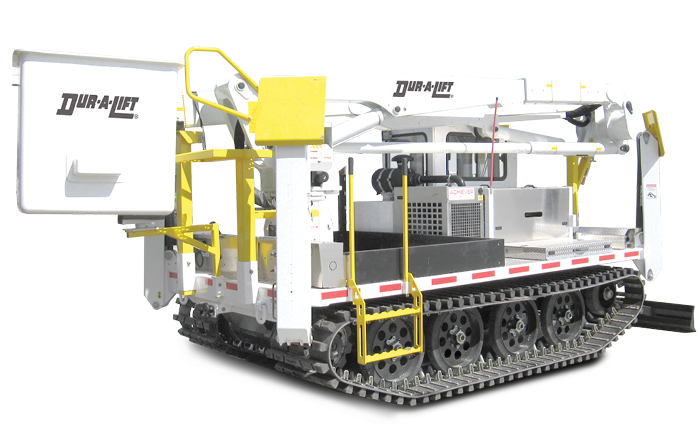

52′-67′ Track-Mounted Buckets

Product Specifications

• Maximum Work Height: 57′ up to 67′
• Maximum Side Reach: 31′ 6″
• Stowed Travel Height: 9′ 3″ (approx.)
• Extension Boom Travel: 120″
• Main Boom Travel: -35° to +80°
• Articulated Boom Travel: -0° to +80°
• Bucket Capacity
  • (Jib Not In Use): 550 lbs.
  • (Jib In Use): 400 lbs.
• Maximum Jib and Winch Capacity: 1,000 lbs.
• Base Installed Weight: 16,200 lbs. (approx.)

Product Features

• Manufacturers: UTV and Dur-A-Lift
• 1-Man Open Cab
• Roll Over Protection Structure ISO 3471:2008
• Seat with mechanical suspension, 2-point seat belt
• Full instrumentation, illuminated panel gauge
• Fire extinguisher
• Backup alarm and horn
• Engine block heater & air intake pre-heater
• Secondary fuel filter with water separator
• Lights – 2 front & 1 rear on cab, 1 strobe on top
• 2” Receiver socket, front and rear
• Cab entrance step, removable curb side deck ladder
• 2 Sets of parts & service manuals
